Fixed point for difficult surfaces

Fixed point for difficult surfaces

SKU RSFP-X99
€22,95 - €30,95
€22,95
€22,95
€22,95 - €30,95
€22,95

Referenspunkt för svåra ytor, för BIM-referenspunkter i tunnlar eller som en enkel och snabb installerad referenspunkt på byggarbetsplatser

Select model: RSFP-X99

Standard shipping

Approximately 7-10 days delivery time

Fixed point for difficult surfaces, for BIM reference points in tunnels or as a simple and quick installed reference point on construction sites

The high-precision markers and prisms can then be used, for example, as reference points for total stations. If desired, also for scanners or drones with the same XYZ coordinates.

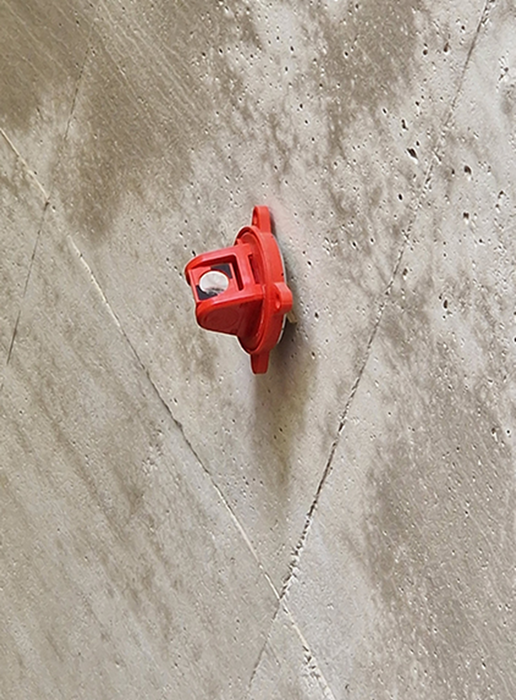

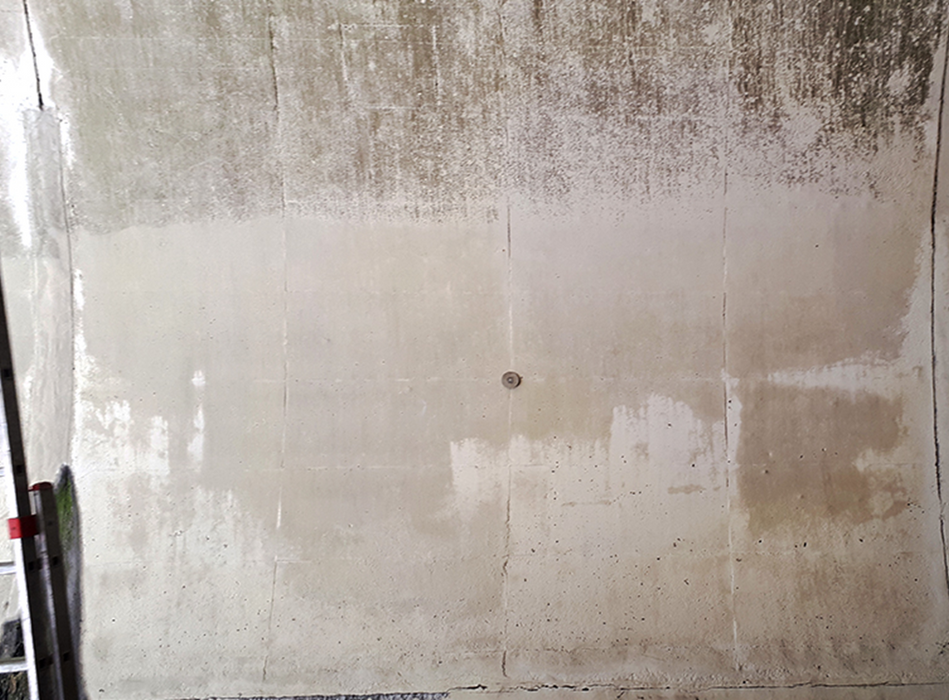

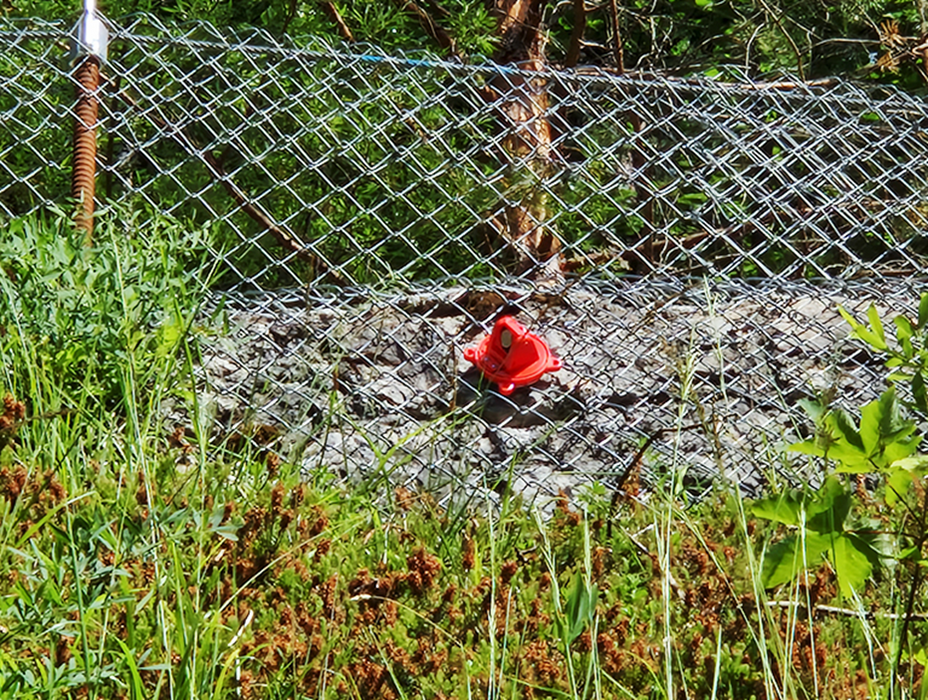

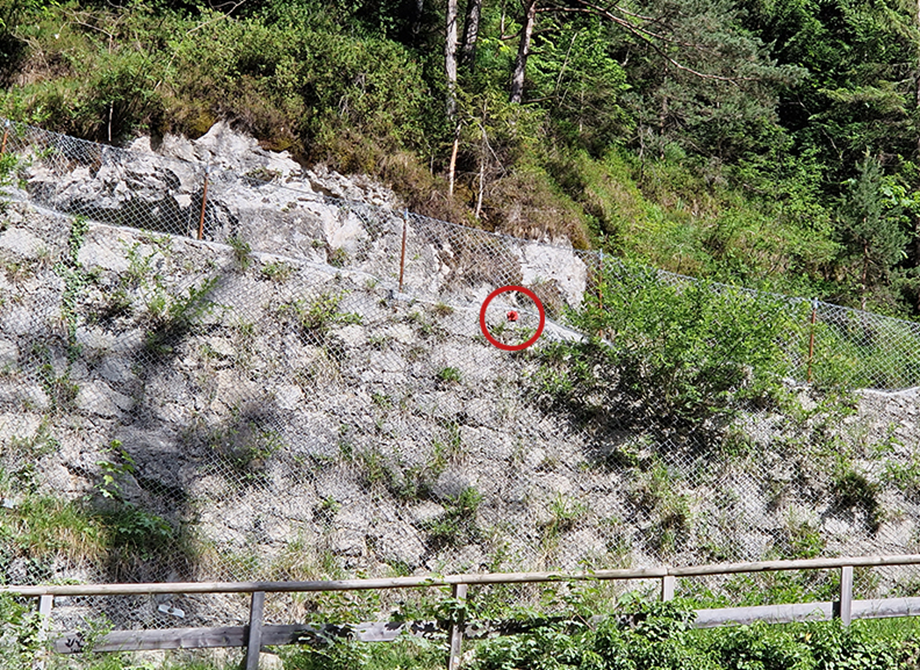

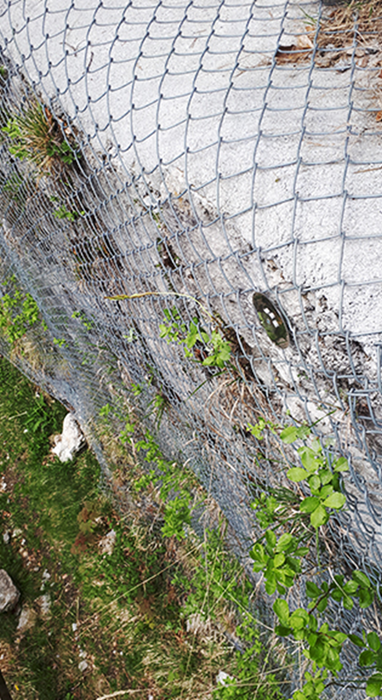

In tunnels or on uneven surfaces, the fixed points are permanently attached by drilling and gluing. For use over a longer period of time, we recommend welding the RSFP-X99. Appropriate markers can then be attached for the survey instruments used in the project.

When you use the offset specified for the respective marker, the measurement point is always exactly the same! Thus, for example, the reference point can be measured with a total station and then used for scanners or drones as well. Therefore, these products are also often used on BIM construction sites.

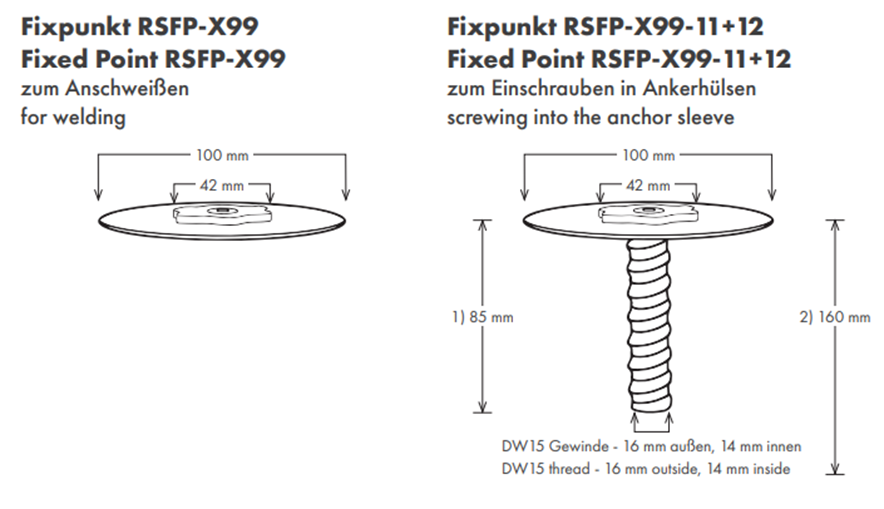

Art no: RSFP-X99 - Dimensions: 100x42mm - For welding

Art no: RSFP-X99-11 - Dimensions: 100x42x85mm - Screwed into anchor sleeve

Art no: RSFP-X99-12 - Dimensions: 100x42x160mm - Screwed into anchor sleeve

The illustration shows all products that can be used with the fixed point RSFP-X99-11+12. Magnets in the base plate hold the reflective target or mini prism exactly in the desired location.

Sökord: Fast punkt, Referenspunkt, Bim-referenser, Tunnlar, Svåra ytor, Totalstation, Rothbucher Systeme
