Laser scanner target

Laser scanner target

SKU RSL-X90M
€51,95 - €53,95
€53,95
€51,95 - €53,95
€53,95

Laserscannermål passar utmärkt för skannrar från Leica, Geomax, Faro, Z+F (Zoller+Fröhlich) och Trimble

Select model: Laser scanning target Magnetic

Standard shipping

Approximately 7-10 days delivery time

RSL-X80 RSL-X90M RSL-580 RSL-590M

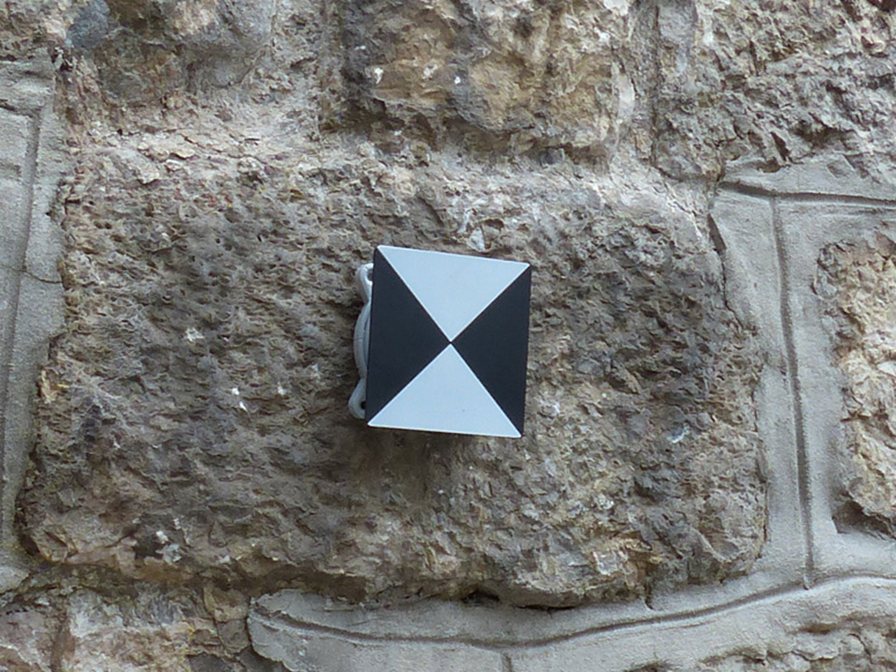

  • Laser scanner targets are ideal for scanners from Leica, Geomax, Faro, Z+F (Zoller+Fröhlich) and Trimble
  • Fixed points for connecting multiple positions

The following products have the same XYZ coordinates when using the RSFP-X80 fixed point:

  1. Mini prisms RSMP280 and RSMP380
  2. Reflective target RS183
  3. Laser scanner target RSL-X80
  4. Drone targets RSL580-10 and RSL580-20
  5. In combination with the RSFP-X80 survey mark, any of the listed mini prisms or objectives can be set at the same point over and over again

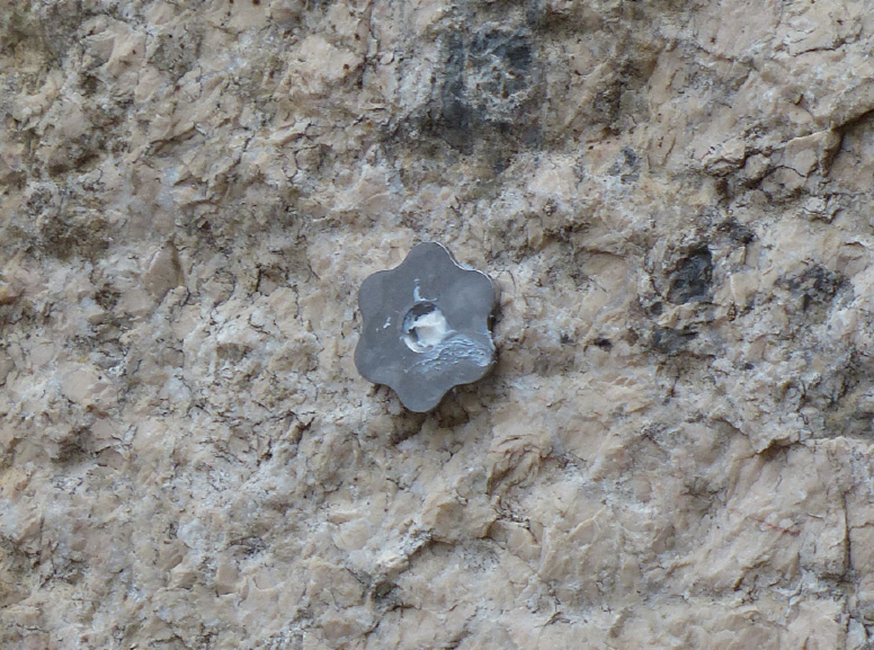

For repeated measurements, a barely visible stainless steel wall washer remains on the building (e.g. on a facade).

The following products have the same XYZ coordinates when using the RSFP-X90M fixed point:

  1. Mini prisms RSMP290M and RSMP390M
  2. Reflective target RS193M
  3. Laser scanner target RSL-X90M
  4. Drone targets RSL590M-10 and RSL590M-20
  5. In combination with the RSFP-X90 survey mark, any of the listed mini prisms or objectives can be set at the same point over and over again
For repeated measurements, a barely visible stainless steel wall washer remains on the building (e.g. on a facade).
  • When using Fixed Points RSFP-X80 or RSFP-X90, the same measuring point can be used for measurements with a total station, laser scanner and drone

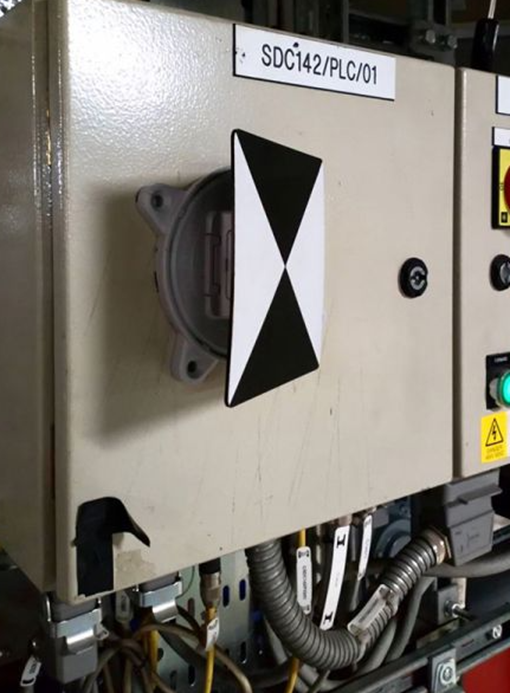

  • If necessary, the laser scanner targets can also be glued or permanently fixed

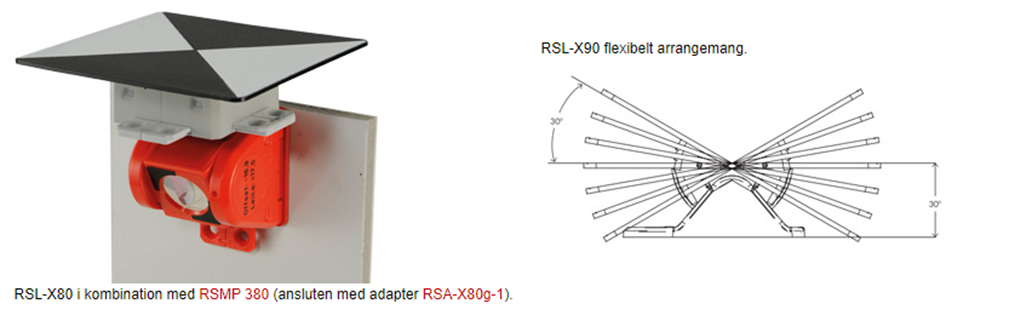

RSL-X80 in combination with RSMP 380 (connected with adapter RSA-X80g-1 ).

 RSL-X90 flexible arrangement.

Sökord: Laserscannermåk, Reflekterande, Drönarmål, Rothbucher Systeme
