L5 M-Pro
Standard shipping
Approximately 7-10 days delivery time

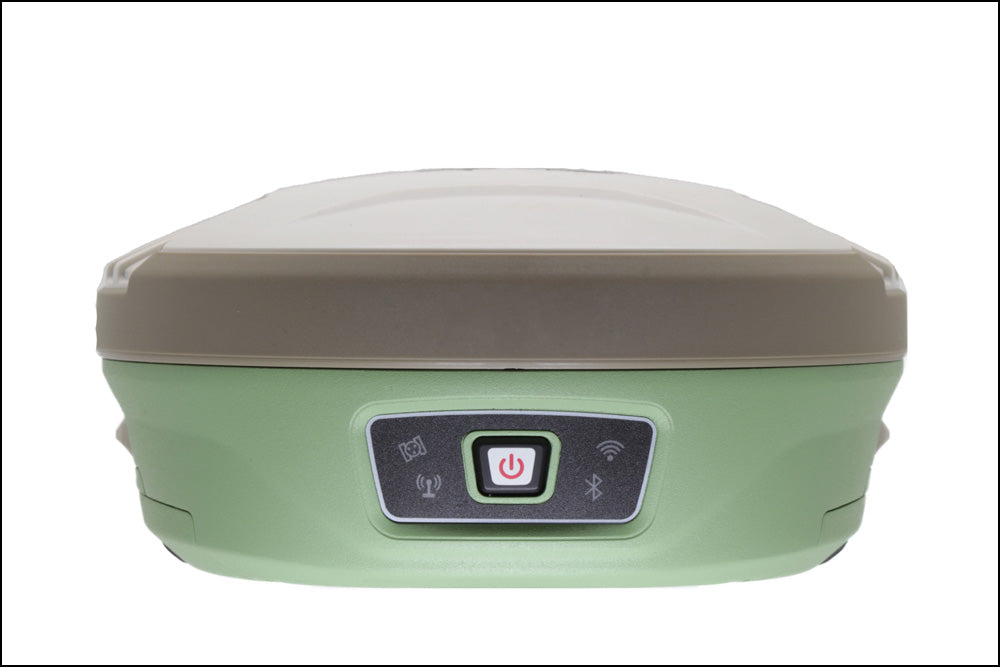

L5 M-Pro complete GNSS equipment
The top model L5 M-Pro has everything a modern GNSS receiver requires. Use it as a rover or set it up as a base station. With both 4G and radio modems, you can receive corrections either via SWEPOS Network RTK service or from a local base station. Under the hood, it is equipped with the latest generation GNSS card from Hemisphere that will not disappoint you.

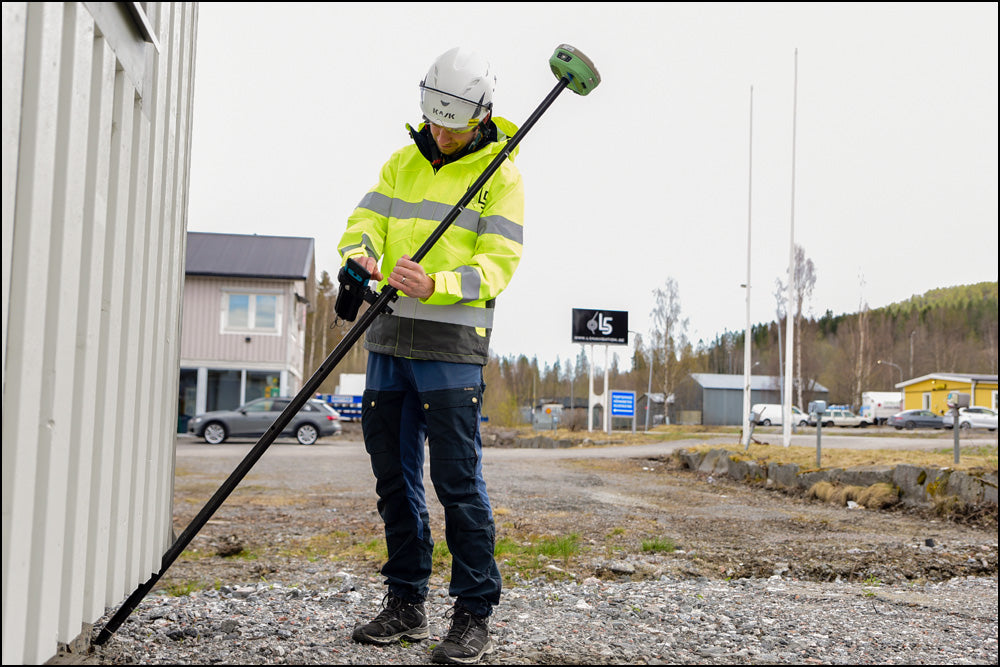

Full-featured and calibration-free IMU tilt allows you to measure points that were previously impossible to access in a smooth way. It also gives you the opportunity to keep a better eye on your surroundings instead of staring at the level - detecting potential hazards in time. In addition, there are good opportunities to increase the efficiency of your surveying sessions by avoiding the plumb-line moment that can otherwise easily slow down the pace.
Dual batteries mean you never have to shut down your equipment to change batteries. For marathon shifts, simply bring a spare and change on the go to avoid loss of production. IP68 means you can measure all year round, even in the most extreme conditions.
A professional receiver at the price of an entry-level model. All conceivable functionality is included.
- Calibration-free IMU tilt!
- GPS, GLONASS, GALILEO, BEIDOU satellite systems are included in the price
- Both 4G and UHF modems
- IP68 protection rating
 |
The price refers to complete measuring equipment with Field Plate, Surpad measuring program, 2 meter telescopic carbon fiber pole, computer holder and pole mount.
Support agreement
Support agreement included for the first year. It includes free telephone/remote support, access to future software versions, Internet connection with 2GB data traffic/month.
If you purchase a support agreement starting in year 2, it will then cost SEK 4,000 per year.
Sweposa subscription
To achieve centimeter accuracy with the GNSS receiver, a subscription to SWEPOS network RTK service is required. We rent these out for 9000 SEK/year.
Technical specifications
| GNSS | |
|---|---|
| Signals: | GPS: L1CA, L1P, L1C, L2P, L2C, L5 GLONASS: G1, G2, G3, P1, P2 GALILEO: E1BC, E5a, E5b, E6BC BDS: B1i, B2i, B3i, B10C, B2A, B2B, ACEBOC ZSS: L1CA, L2C, L5, L1C, LEX IRNSS: L5 SBAS: 3-channel parallel tracking Atlas |
| Channels: | 800+ |
| ACCURACY | |
|---|---|
| Static measurement: | H 2.5 mm ± 1 ppm V 5 mm ± 1 ppm |
| RTK: | H 8 mm ± 1 ppm V 15 mm ± 1 ppm |
| Tilt: | 2 cm (at tilt angle 60°) |
| Atlas H10: | 8cm |
| Initialization: | 8s with 99.9% reliability |
| SYSTEM | |
|---|---|
| Operating system: | Linux |
| Storage: | 8GB MicroSD |
| Wi-Fi: | 802.11 b/g/n |
| Bluetooth: | V2.1+EDR/V4.1 Dual Cl. 2 |
| E-Bubble: | Have support for it |
| Tilt: | IMU, 400 Hz refresh rate |
| Sound: | Support for TTS Audio Broadcasting |
| COMMUNICATION | |
|---|---|
| UHF: | Built-in TRx radio with adjustable output power: 1W/2W. Frequency range: 410-470MHz |
| Protocol: | Support for GeoTalk, SATEL, PCC-GMSK, TrimTalk, TrimMark, South, Hi Target |
| Network: | 4G modem compatible with 2/3/4G networks |
| PHYSICAL PROPERTIES | |
|---|---|
| Contacts: | 1x TNC (UHF Antenna), 1x 5PIN (Power+RS232), 1x 7PIN (USB+RS232) |
| Buttons: | 1x Power button |
| Diodes: | 4x LEDs |
| Size: | Ø156mm x H76mm |
| Weight: | 1.2 kg with two batteries |
| CURRENT | |
|---|---|
| Battery: | 2 pcs 7.2V, 24.5Wh, Hot swap |
| Battery life: | Static: 15 hrs RTK: 12 hrs |
| External power | Connects via 5PIN connector |
| Voltage: | DC 9-18V |
| ENVIRONMENT | |
|---|---|
| Temperature: | Operation: -45°C to +75°C Storage: -55°C to +85°C |
| IP rating: | IP68 |
| CASE: | Withstands drops from 2 m onto a hard surface mounted on a plumb line |
Sökord: L5 M-Pro, IMU-tilt, GNSS, 4G, Radiomodem, IP68
